Hinged Window and Door Systems

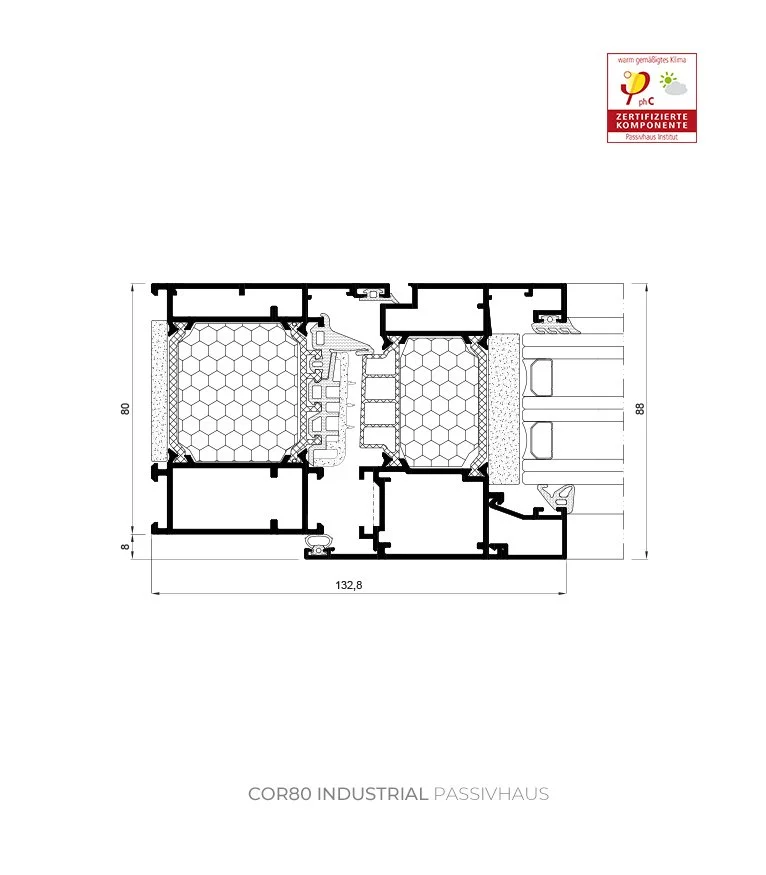

COR 80 Industrial Passivhaus TB
-
Certified for the warm-temperate category, this system offers exceptional thermal insulation thanks to its special foams on the frame and sash. With a transmittance value Uw from just 0.66 W/m²K, it is an ideal solution for buildings with low energy consumption.
Possibilities
» Security hardware
» Concealed hinges
-
» Glazing
Max. 65 mmMin. 25 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt & parallel
Tilt only
» Sightlines
Frame 80 mm
Sash 88 mm
» Profile thickness
1.6 mm
» Polyamide strip length
45 mm
» Maximum sash dimensions
Width (L) 1,00 mm
Height (H) 2,600 mm
» Maximum sash weight
160 kg
» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
-
» Transmittance
Uw ≥ 0.66 (W/m2K)
Consult maximum weight and dimensions according to typologies.
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1950
» Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes

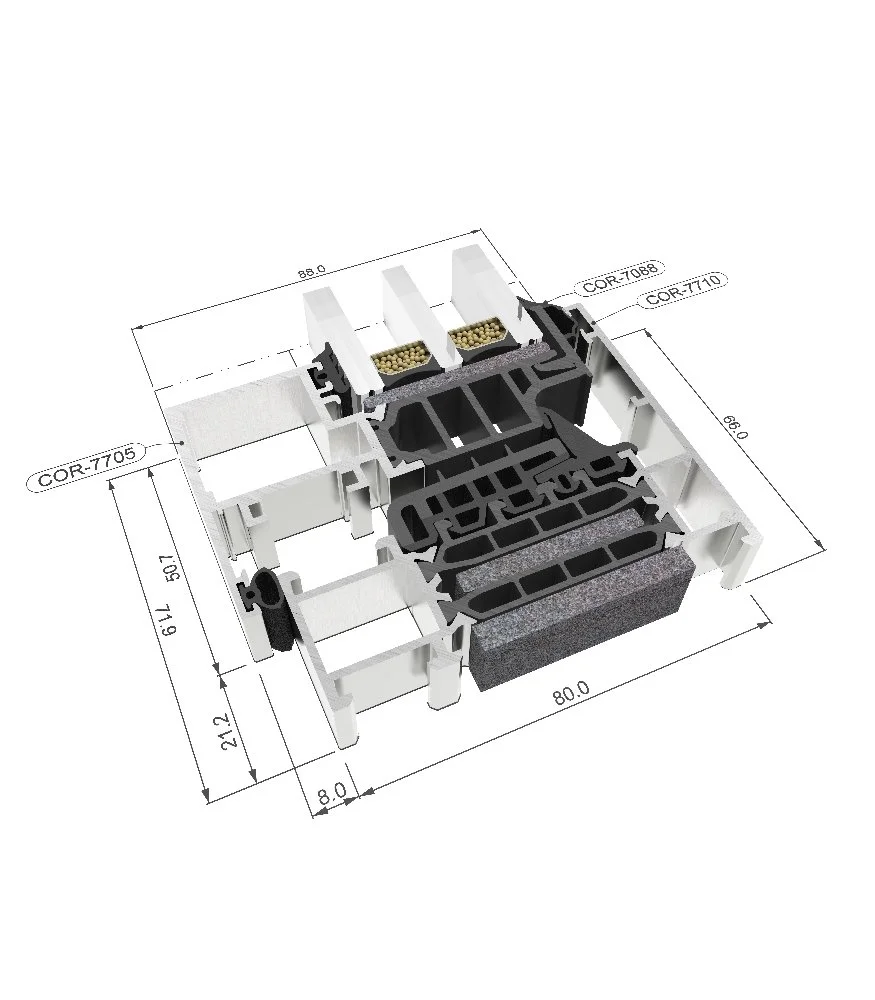

COR 80 Hidden Sash TB
-
With a 80 mm frame depth, the COR 80 Industrial series responds to the most severe climatic requirements thanks to its thermal break with 45 mm tubular polyamide strips and the incorporation of polyolefin both around the glass and between the frame and sash.
-
» Glazing
Max. 65 mm
Min. 16 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt & parallel
Tilt only
Outward opening
Side hung
Top hung
» Sightlines
Frame 80 mm
Sash 88 mm
» Profile thickness
Window 1.5 mm
Balcony 1.6 mm
» Polyamide strip length
45 mm
» Maximum sash dimensions
Width (L) 1,500 mm
Height (H) 2,600 mm
» Maximum sash weight
160 kg
» Aesthetic possibilities
Sash: Straight / Bead: Straight or curved
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
-
» Transmittance
Uw ≥ 0.66 (W/m2K)
Consult maximum weight and dimensions according to typologies.
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1950
» Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes
COR 80 Industrial TB
-
Elegant design with straight aestheticin which the sash is concealed behind the frame, thus maximizing the glazed surface and the entry of light. Added to all of this is the great thermal and acoustic performance prompted by the 45 mm thermal break and a glazing capacity of up to 51 mm that allows the installation of triple glazing.
Possibilities
» Security hardware
» Concealed hinges
» Concealed drainage
» Concealed handle
-
» Glazing
Max. 51 mm
Min. 36 mm
» Opening possibilities
Inward opening
Side hung
Tilt & turn
Tilt only
» Sightlines
Frame 80 mm
Sash 80 mm
» Profile thickness
Window 1.9 mm
» Polyamide strip length
45 mm
» Maximum sash dimensions
Standard Solution
Width (L) 1,300 mm
Height (H) 2,400 mm
HD Hinges (Side Hung)
Width (L) 1,200 mm
Height (H) 3,500 mm
» Maximum sash weight
160 kg
Consult maximum weight and dimensions according to typologies.
» Finishes
Possibility of dual colour systems
Colour powder coating (RAL, mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodised
-
» Transmittance
Uw ≥ 0.8 (W/m2K)
Consult maximum weight and dimensions according to typologies
» Acoustic insulation
Rw up to 46 dB
» Air permeability
(EN 12207) Class 4
» Water tightness
(EN 12208) Class E1650
» Wind resistance
(EN 12210) Class C5
Reference test 1.23 x 1.48 m / 2 sashes
